EDFA-PA Series

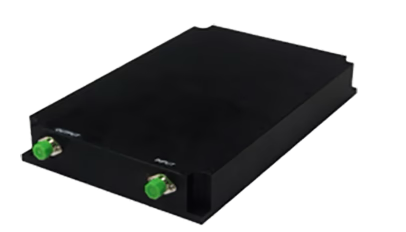

EDFA-PA Series : pre-amplifier modules C-band and L-band

The Optilab EDFA-PA Series are Pre-Amplifirs EDFA modules for amplifying low input level signals. They are easy-to-use and cost-efficient solutions for photonic subsystems, OEM integration, and fiber optic system integration. Using a high gain design, this module provides over 25 dB gain with a 4.5 dB noise figure and are designed to amplify signal with a low input level as low as -40 dBm. Software control is standard via an RS- 232 port for status monitoring and pump current adjustments, and pump laser protection and alarms are equipped to ensure the reliability and safety of the device. The EDFA-PA Series requiresa single ±5 V DC power supply for operation that comes included with each unit.

Benchtop and rack versions are available as well as amplifiers with PM (polarization maintaining) fibers.
